Twin Shock Absorbers

WMT

WMT spring preload upgrade

With this new device, it is possible to change the spring preload without having to act on adjusting rings, which can often be uncomfortable.

Bitubo wants to provide classic and custom users an high technology level adjustment system in order to easily obtain the right set for driving in total safety. With the new hydraulic preload, it is possible to change the spring preload without having to engage on rings, which can often be uncomfortable.

Compatibility Check:

Stability

Perfect control of the front and during downhill and extreme braking.

Grip

Thanks to the immediate hydraulic control.

Uniform

Wear of the tyres.

Technical Features:

  • Shock body manufactured with high resistance alloyed steel
  • Ø 12mm steel rod
  • Separated aluminium compensation chamber
  • Gas pressurised (Nitrogen)
  • CNC machined billet aluminium heads

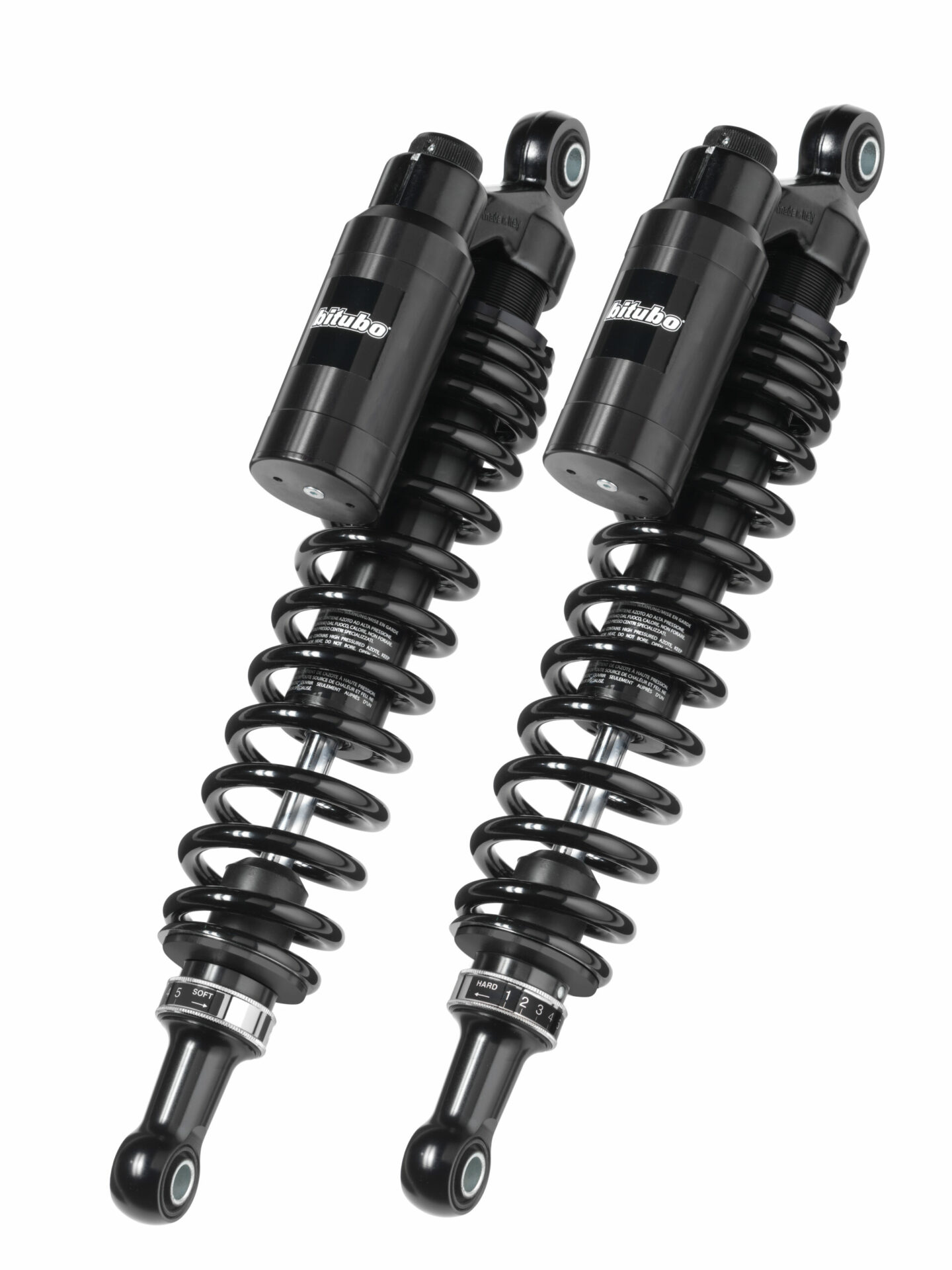

WMT22 / 22V2

DARK EDITION

Piggyback Shocks with Compact Hydraulic Preload adjust and Stepless Rebound

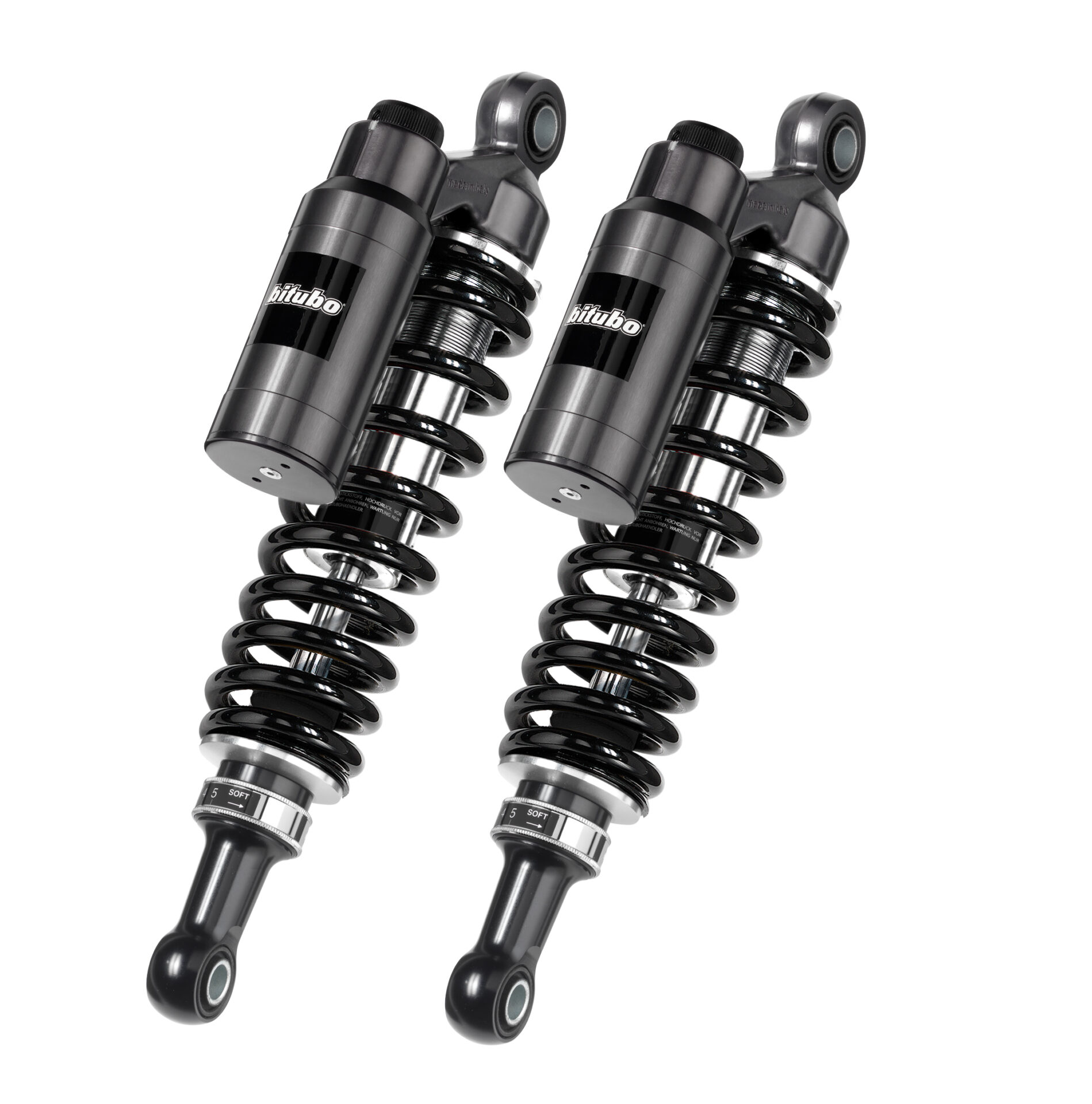

WMT02V2

DARK EDITION

Piggyback Shocks with Preload, Rebound and Compression Adjust

WMT12

DARK EDITION

REAR TWIN SHOCK with “piggy back” separated tank and adjustable length

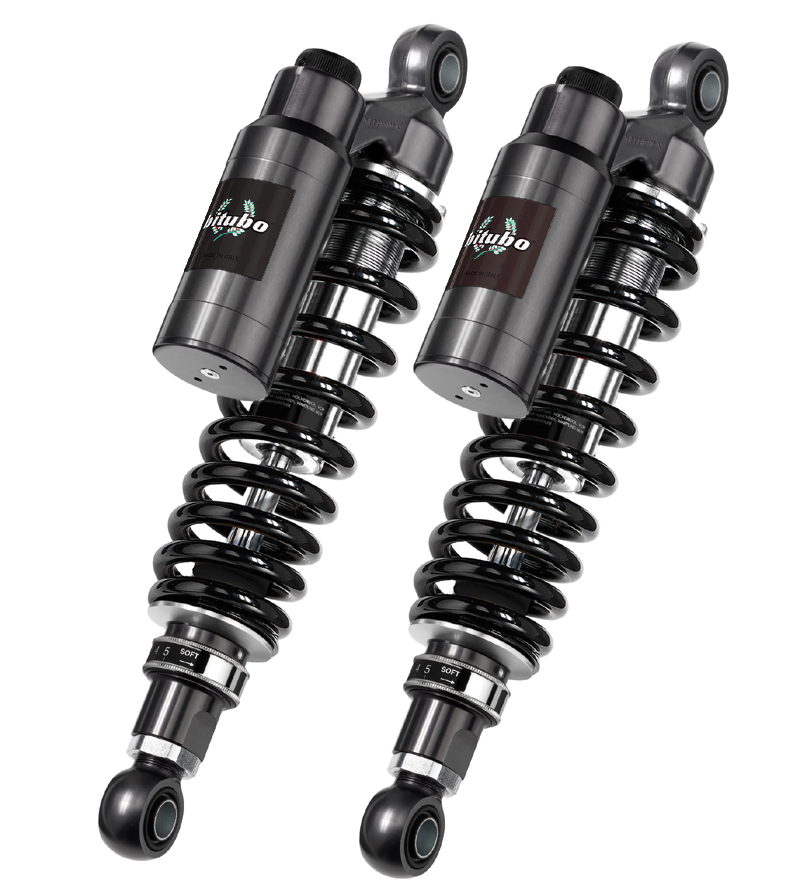

WMT72

DARK EDITION

Longer length

REAR TWIN SHOCK with “piggy back” tank and longer length

ADJUSTMENTSWMT22/22V2WMT02V2WMT12WMT72
COMPRESSION12 clicks12 clicks12 clicks12 clicks
REBOUND (w/ Altingly or Traditional Ring)5 o/or 7 clicks5 o/or 7 clicks5 o/or 7 clicks5 o/or 7 clicks
SPRING PRELOAD10 mm / 20 clicksSteplessSteplessStepless
LENGTH––up to 10mmup to 10mm
