Mono Shock Absorbers
CLU / CYU
An important upgrade for your bike
The difference between an OEM suspension and a higher level suspension produced by Bitubo is obvious and is reflected in an improved response of the bike which is more predictable and easy to control especially at high lean angles where the suspension does its job to the maximum.
Compatibility Check:
Perfect control of the front during downhill and extreme braking.
Thanks to the immediate hydraulic control.
Wear of the tyres.
Technical Features:
- Nitrogen pressurised, with oil/gas floating piston in the compensation chamber
- Ø 16mm piston rod with anti- friction treatment and low friction bushing
- Upper and lower head attachments made in aeronautical aluminium alloy, on precision CNC machines

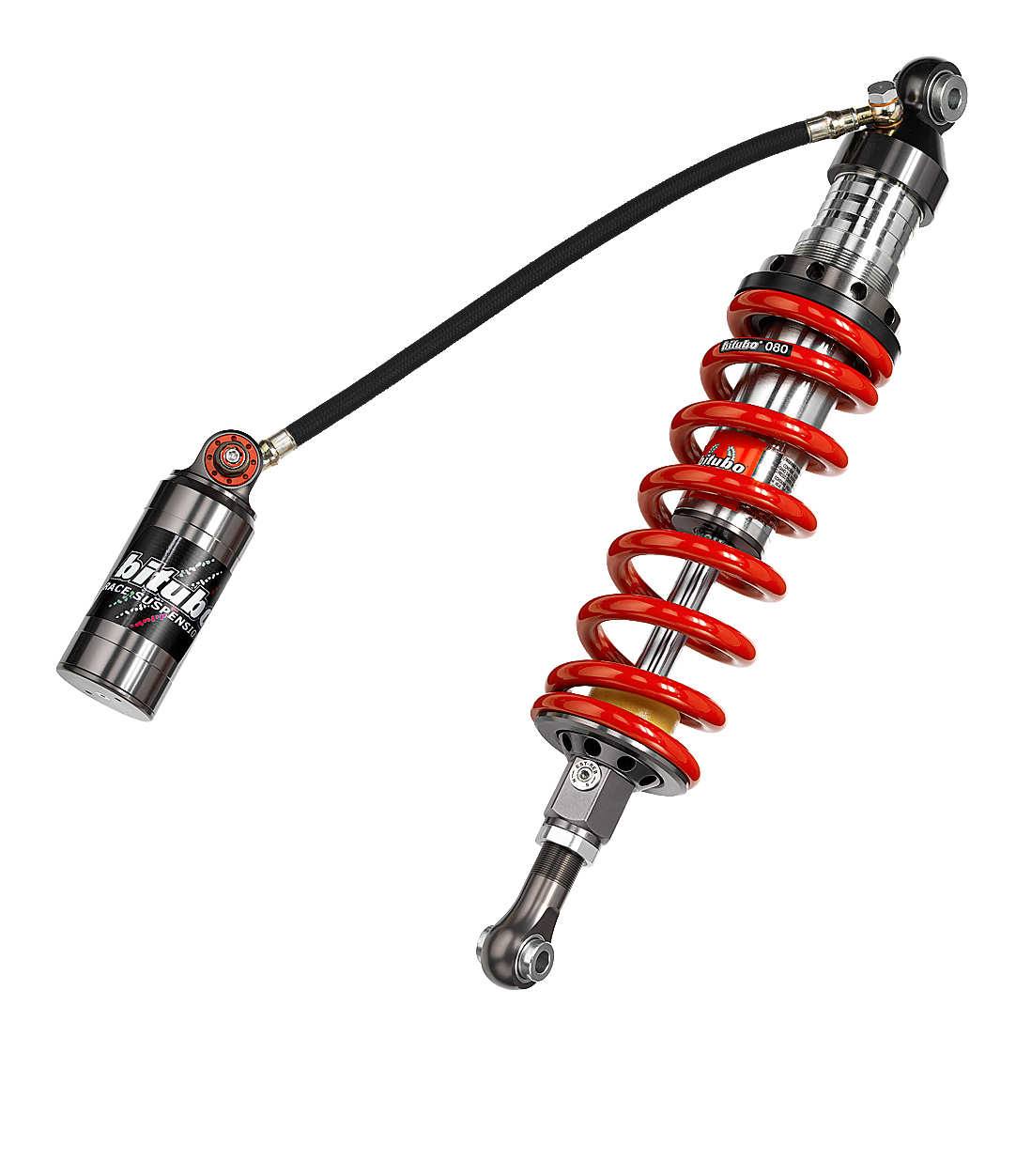

CLU1 / CYU*
The compensation tank is separated from the body for better fluid cooling and more freedom in the mounting position. It is connected by a flexible hose, braided for very high pressure to improve the shock feedback and to increase the grip and comfort.

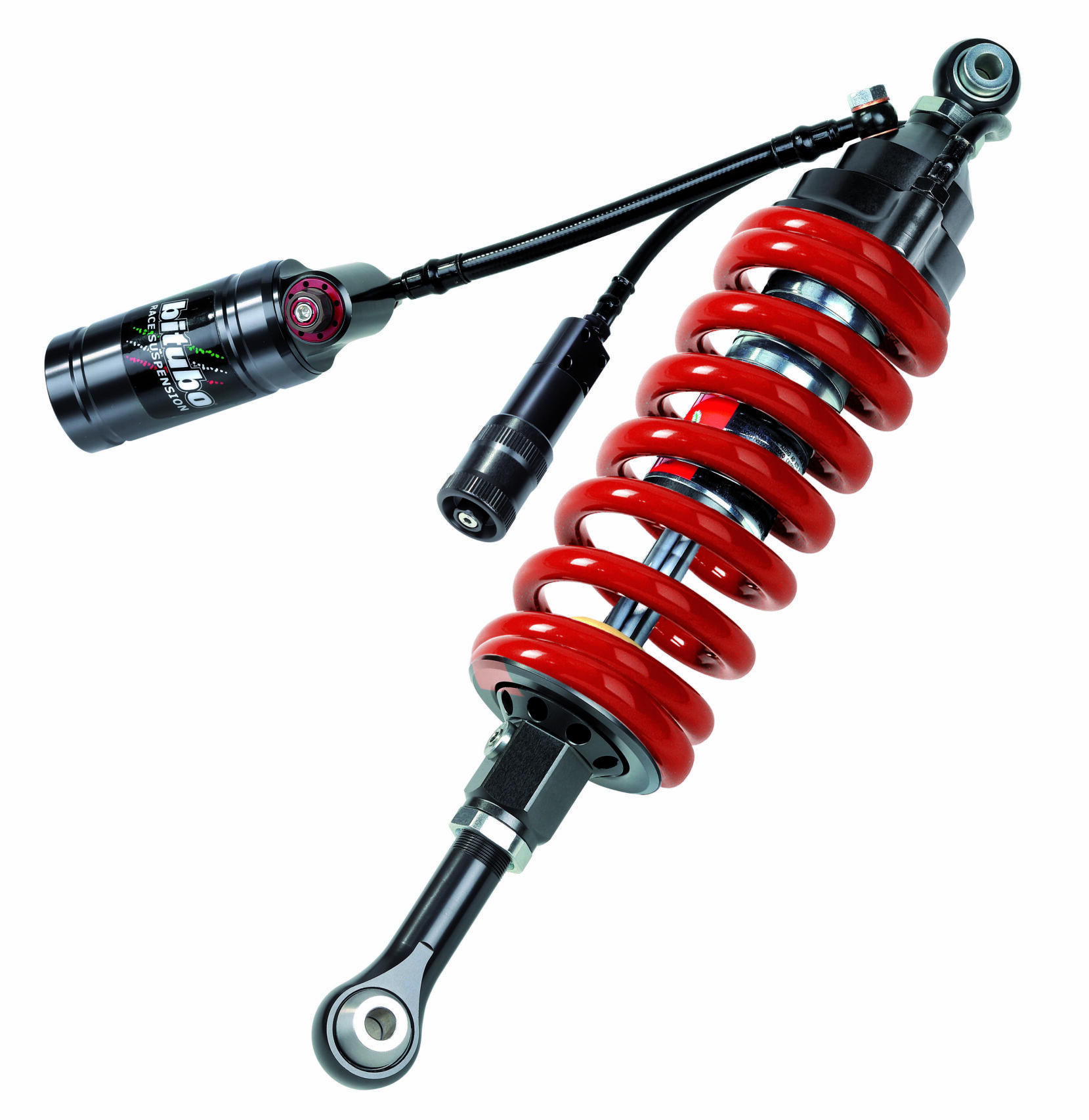

CLU3 / CYU3
The compensation tank is separated from the body for better fluid cooling and more freedom in the mounting position. It is connected by a flexible hose, braided for very high pressure to improve the shock feedback and to increase the grip and comfort.

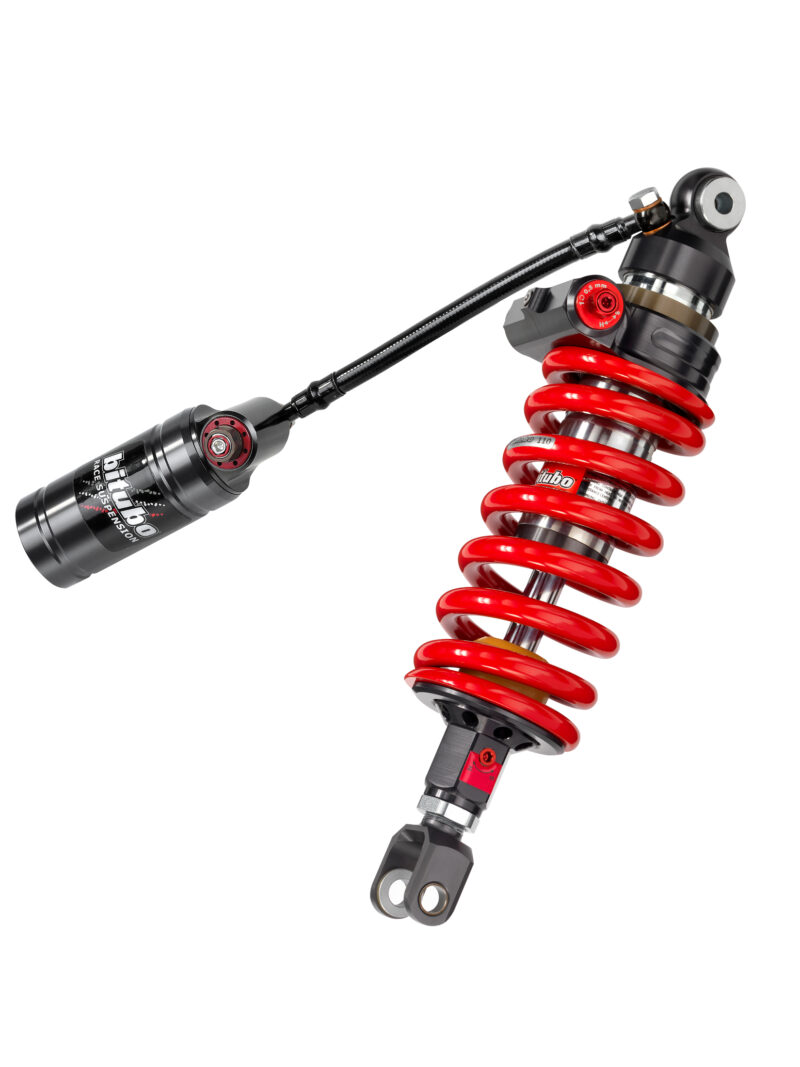

CLU3V2 / CYU3V2
The compensation tank is separated from the body for better fluid cooling and more freedom in the mounting position. It is connected by a flexible hose, braided for very high pressure to improve the shock feedback and to increase the grip and comfort.
| ADJUSTMENTS | CLU1 / CYU1 | CLU3 / CYU3 | CYU3V2 / CLU3V2 |
|---|---|---|---|
| LOW SPEED COMPRESSION | 24 clicks | 24 clicks | 24 clicks |
| HIGH SPEED COMPRESSION | 20 clicks | 20 clicks | 20 clicks |
| REBOUND | 20 clicks | 20 clicks | 20 clicks |
| HYDRAULIC SPRING PRELOAD | – | 12 mm – 24 clicks | 10 mm – 20 clicks |
| MANUAL SPRING PRELOAD | Stepless | – | – |
| LENGTH | up to 8mm | up to 8mm | up to 8mm |
