Fork Cartridge

EBH

Fork cartridge created for Racing

The EBH pressurised cartridge incorporates a series of innovative systems such as the already known FPS, EC, LC and the new OPC (over pressure control) is now available in the extension and compression sleeves.

These systems are the result of a long experience of development by our Research and Development department in collaboration with some of the best teams that participated in the World SBK, BSB, IDM, CIV.

On the top cap are all adjustments, spring preload, extension and compression that are distinguished in the two cartridges, simple and intuitive.

The particular distribution of the compensation allows to obtain a very high control and a wide range of adjustments to meet the riding needs of all riders.

Compatibility Check:

Stability

Perfect control of the front and during downhill and extreme braking.

Grip

Thanks to the immediate hydraulic control.

Uniform

Wear of the tyres.

FPS

Full Pressure System:
The system is pressurised with low pressure gas and coaxial chamber.
The cartridges are asymmetric: one controls the compression phase, while the other the extension phase. The particular distribution of compensation allows you to get a very high control and a wide range of adjustments to meet the driving of all riders.
Thanks to the possibilities offered by FPS, the adjustments available on the Bitubo EBH allow a wider range of damping curves compared to the a standard hydraulic fork, especially at very low speeds.

LC

Light Components:
This product has a high percentage of special light alloys and details optimised in weight, with the aim of achieving the maximum lightness possible.

Technical Features:

  • Hydraulic control with FPS system (Bitubo Patent)
  • Ø 27mm Ergal piston
  • Ø 10mm pumping rod with anti-friction surface coating
  • Mechanical bottom-out with polyurethane buffer in NBR
  • Upper fork cap with integrated spring preload adjustment
  • Independent damping adjustment in compression and extension
  • Coaxial Compensation Chamber (Bitubo Patent)
  • Ergal cartridge body with anti-friction surface coating
  • Hydraulic lubrication separated from sliding lubrication
  • Pressurisation force control system

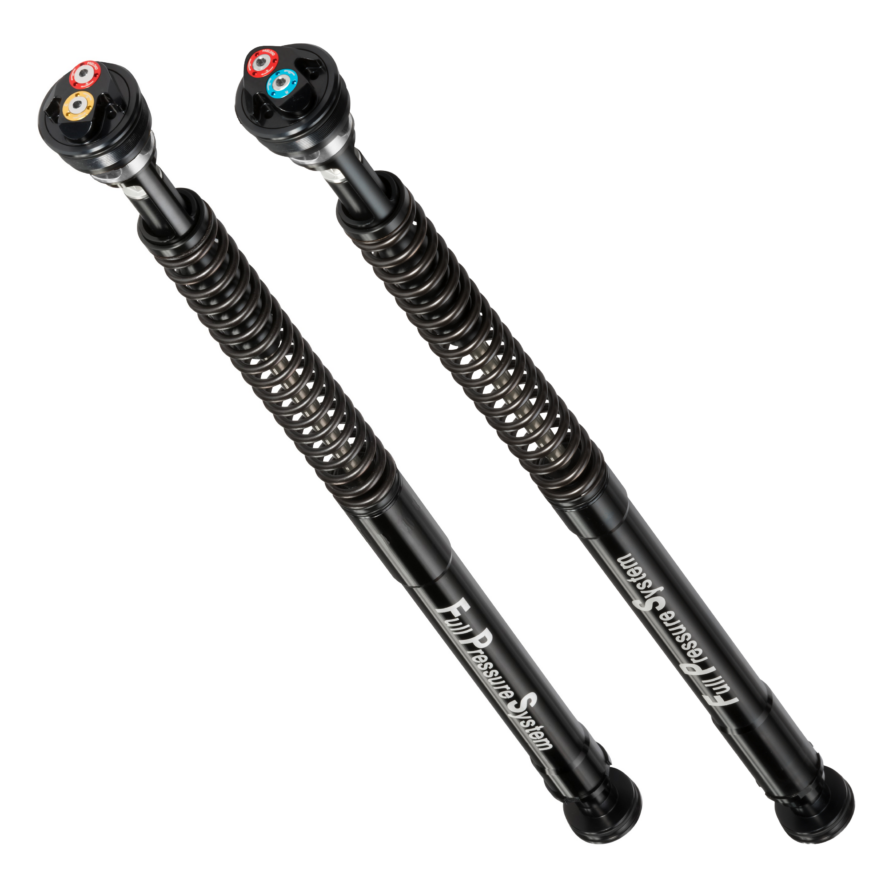

EBH09

EBH59 for increased length

EBH09V1 for inclusion of adjuster closer caps.

Included in the package are 2 additional spare springs with different stiffness to expand the customisation range.
This product is supplied with FUCHS-Silkolene synthetic oil.

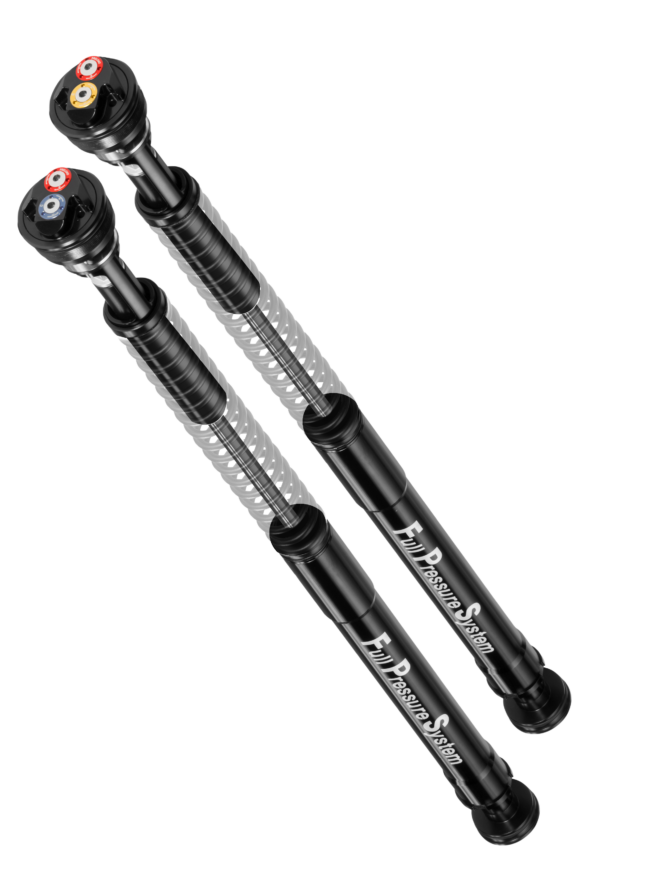

EBH00WO

EBH50W0 for increased length

The kit includes only the cartridge.

Not Included: Springs, external lubricating oil and tools.
These are available for purchase separately

ADJUSTMENTSEBH
COMPRESSION24 clicks
REBOUND24 clicks
SPRING PRELOAD15mm – 15 turns
