Fork Cartridge

JBH

The perfect upgrade

The JBH cartridges are the perfect upgrade to enhance the performance of OEM fork.

The cartridges are equipped with many adjustments such as spring preload, rebound and compression.

Plug & Play, it doesn’t require any modification of original components and allows you to restore original suspensions at any time.

Compatibility Check:

Stability

Perfect control of the front during downhill and extreme braking.

Grip

Thanks to the immediate hydraulic control.

Uniform

Wear of the tyres.

EC

Easy Changer:
Easy Changer is the spring quick change system and new cartridge disassembly system, without the need to remove the fork from the bike. This system makes it quick to modify the hydraulic calibration by track technicians because it is enough to modify a single cartridge for compression or rebound.

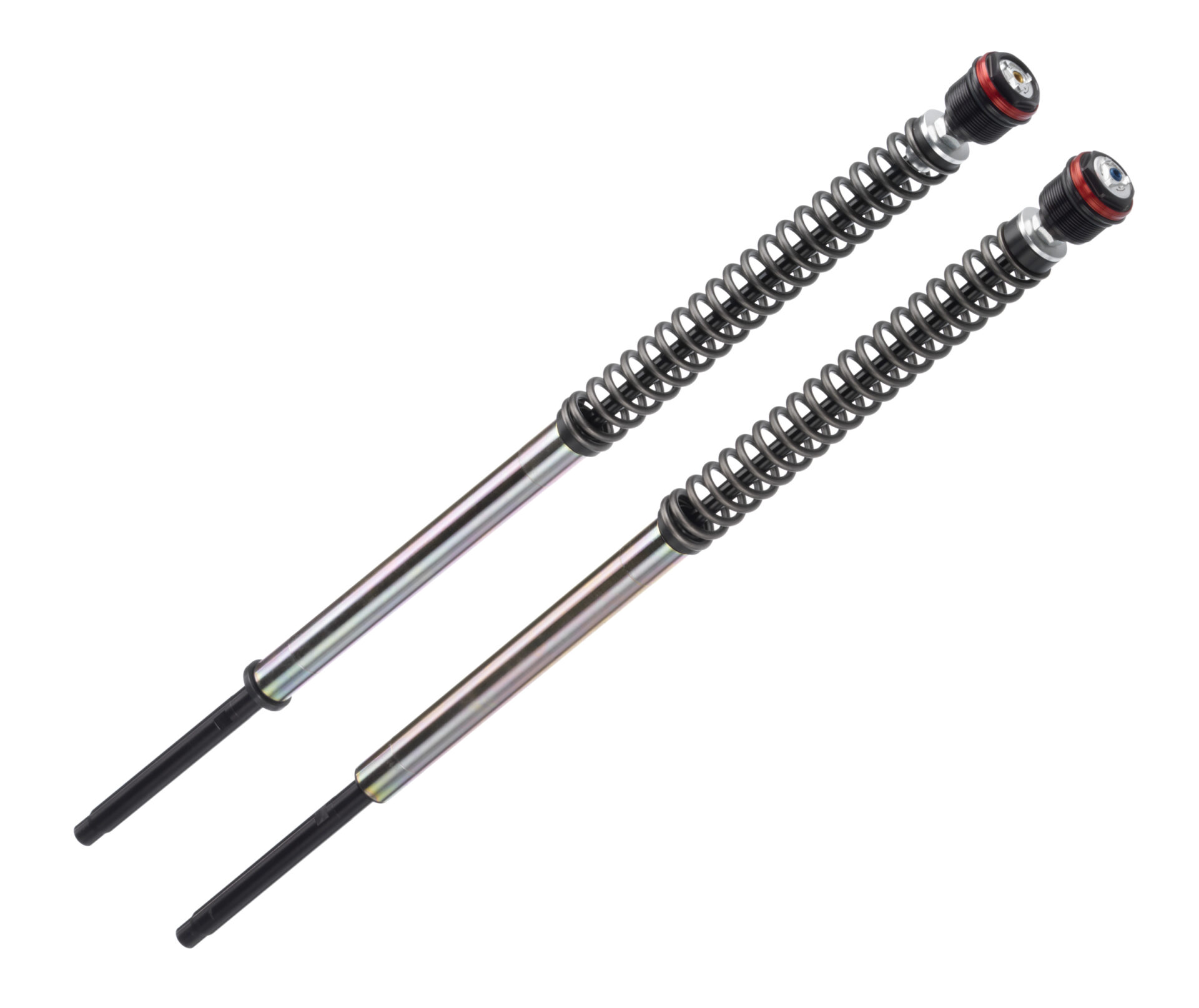

JBH01

TRADITIONAL

They are fully customisable pressurised cartridges thanks to the adjustments placed on the upper caps.
The pressurisation allows greater vehicle support and greater driving comfort.

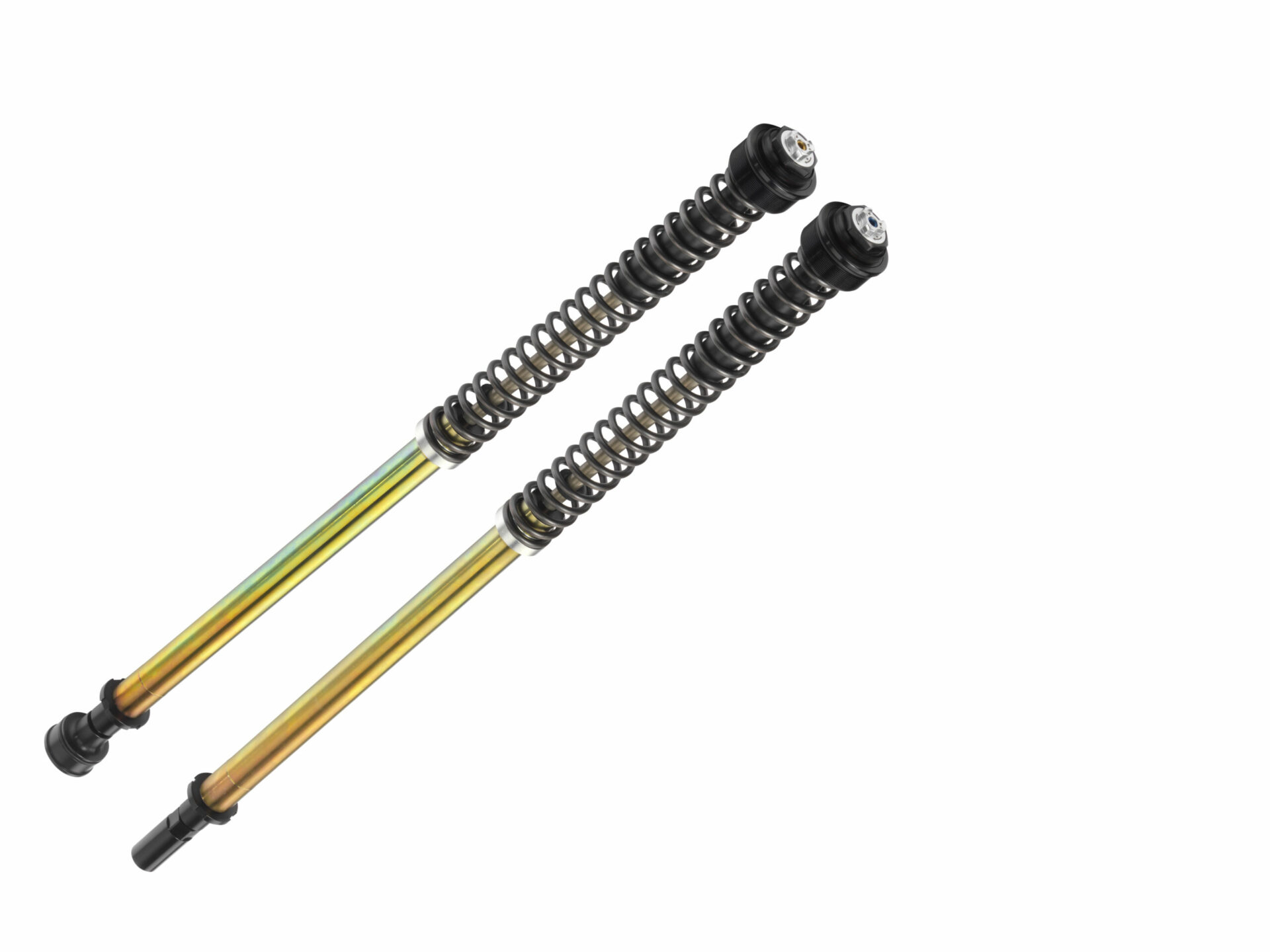

JBH01V1

UPSIDE DOWN

The JBH01V1 pressurised cartridges, unlike the JBH01, are Upside Down type. They also allow you to adjust preload, extension and compression directly from the upper caps.

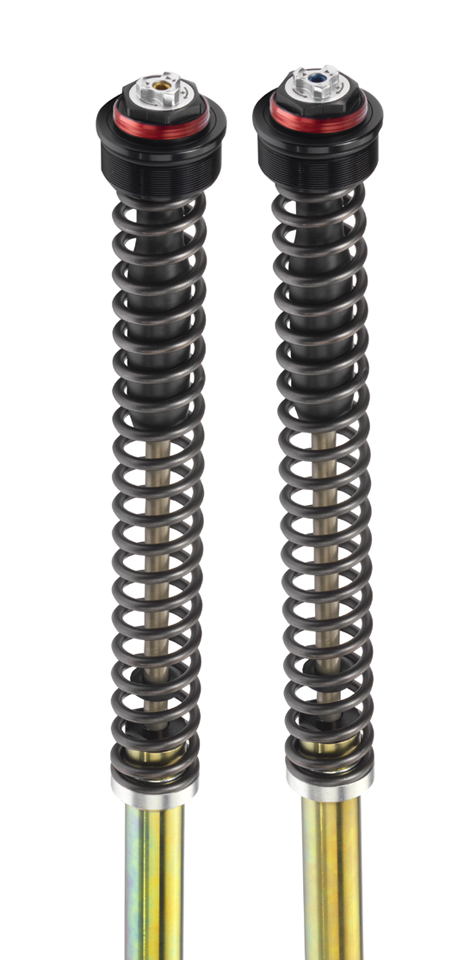

JBH01V2

UPSIDE DOWN

The JBH01V2 cartridge is non-pressurised and has been created specifically for the most popular Dual Sports equipped with Upside Down forks.

ADJUSTMENTSJBH01JBH01V1JBH01V2
COMPRESSION20 clicks20 clicks20 clicks
REBOUND20 clicks20 clicks20 clicks
SPRING PRELOAD10mm – 10 turns15mm – 15 turns – 30 clicks15mm – 15 turns – 30 clicks
