Mono Shock Absorbers

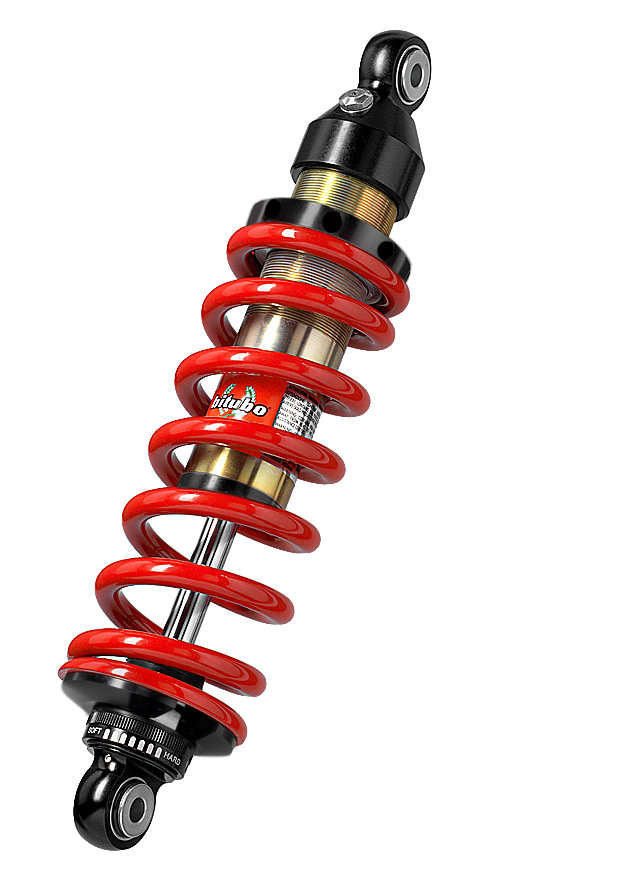

XZE
The best alternative to the original mono
The XZE is a shock absorber with adjustable spring preload and rebound, immediately giving better control of the vehicle and unprecedented comfort, highly customisable thanks to the numerous settings available.
The mono is pressurised with nitrogen with floating oil / gas separator, the shock absorber body is made of steel with a 14 mm rod and surface treatment to reduce friction. The heads are in ergal machined from solid by CNC.
Compatibility Check:
Perfect control of the front during downhill and extreme braking.
Thanks to the immediate hydraulic control.
Wear of the tyres.
Technical Features:
- Gas (Nitrogen) pressurised shock absorber with oil/gas floating piston
- Steel body
- Ø 14 mm steel rod with low friction surface treatment
- CNC machined billet Ergal heads

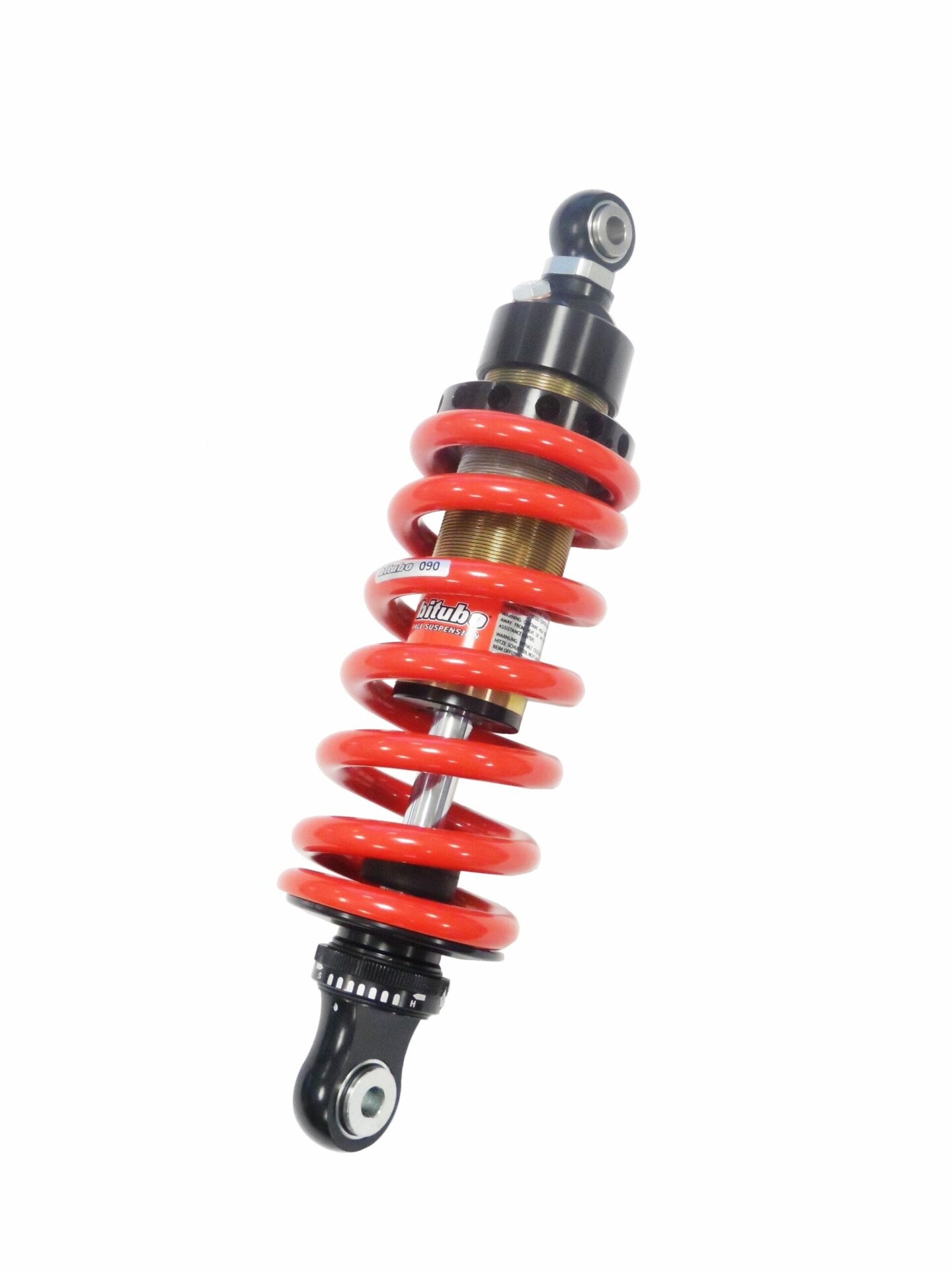

XZE01
THE STARTING POINT
CZE01 for those that require a Ø 16 mm rod.
This suspension, adjustable in spring preload, improves the comfort and control of the vehicle.
XZE11
ADJUSTABLE LENGTH
The adjustable length is useful when modification of the original balance is required.

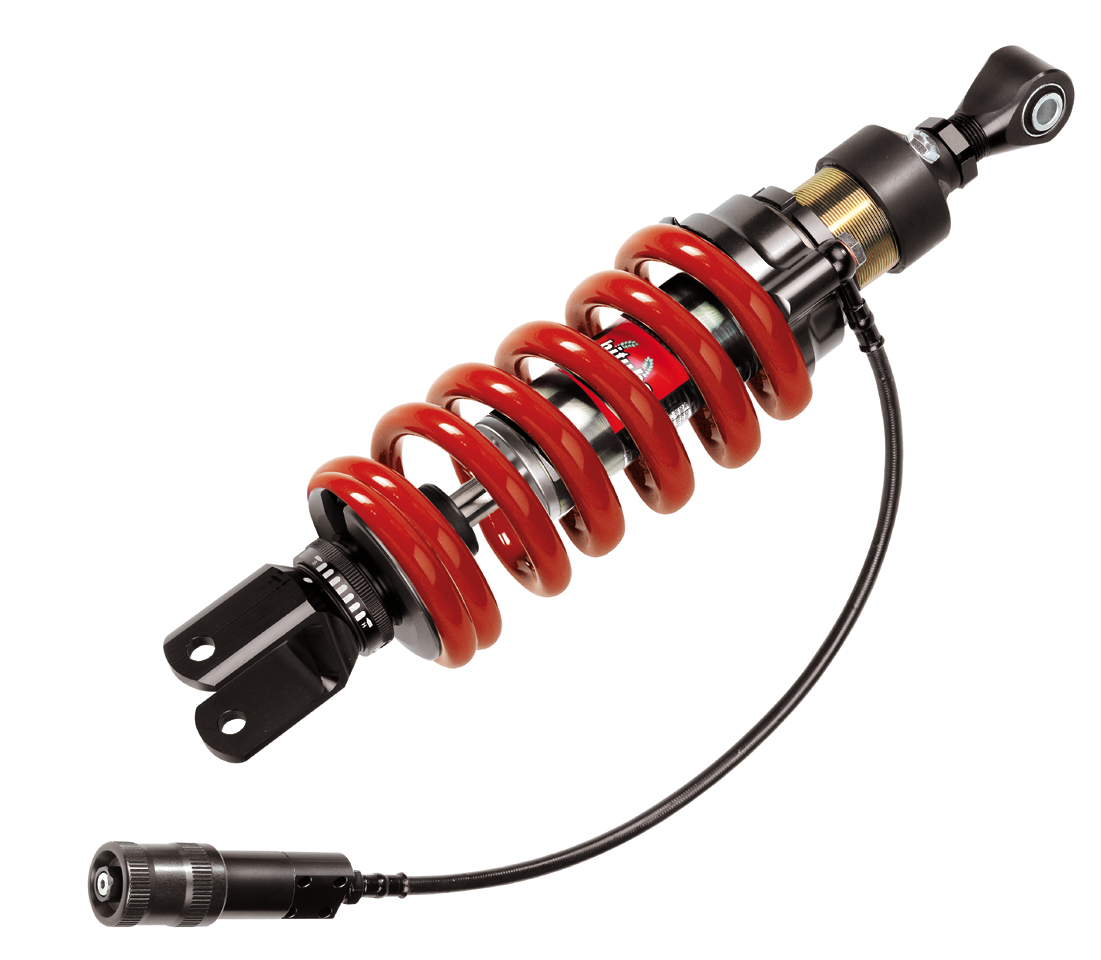

XZE31
HYDRAULIC PRELOAD
The third step of the series is enriched by the hydraulic spring preload, which is easy to use whenever necessary to tailor the set-up to suit the load.

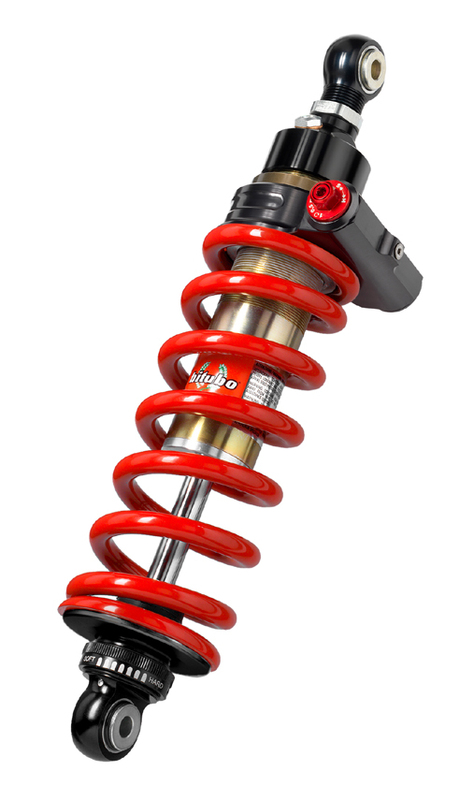

XZE31V2
HYDRAULIC PRELOAD
The third step of the series is enriched by the hydraulic spring preload, which is easy to use whenever necessary to tailor the set-up to suit the load.
| ADJUSTMENTS | XZE01 – CZE01 | XZE11 | XZE31 | XZE31V2 |
|---|---|---|---|---|
| REBOUND | 7 clicks | 7 clicks | 7 clicks | 7 clicks |
| SPRING PRELOAD | Stepless | Stepless | – | – |
| HYDRAULIC SPRING PRELOAD | – | – | 12 mm – 24 clicks | 10 mm – 20 clicks |
| LENGTH | – | up to 10mm | up to 10mm | up to 10mm |
